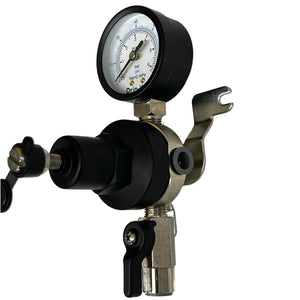

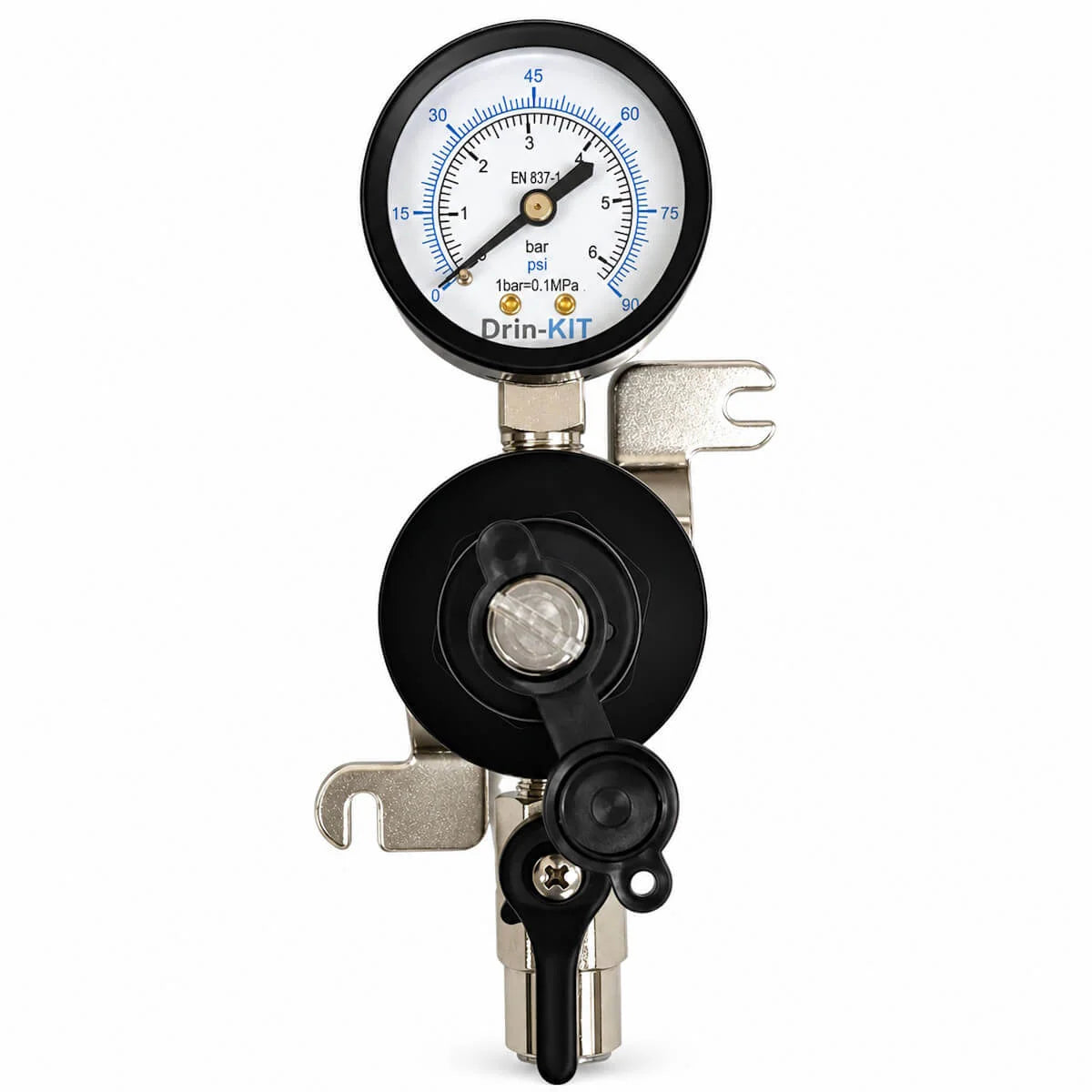

Secondary Gas Regulator Valve with Pressure Gauge – Wall Mounted
The Secondary Gas Regulator Valve with Pressure Gauge is designed for accurate control of gas pressure within professional draught beer and drinks dispense systems. Wall mountable and fitted with an output pressure gauge, it allows the pressure supplied to individual kegs or sections of a dispense system to be adjusted independently.
Suitable for use with CO2, mixed gas and other beverage gases, this secondary regulator features 3/8" push-fit gas connections for straightforward installation into standard cellar and bar dispense systems.
Wall Mounted Secondary Beer Gas Regulator
A secondary regulator is installed downstream from the main or primary gas regulator and allows the dispense pressure to be reduced and controlled for individual products.
This is particularly useful where different beers, ciders or other draught products require different serving pressures from the same main gas supply.
The integrated pressure gauge provides a clear indication of the regulated output pressure, making adjustment and monitoring straightforward.
Key Features
- Secondary gas regulator valve for draught dispense systems
- Integrated output pressure gauge
- Adjustable secondary gas pressure
- Suitable for CO2, mixed gas and beverage gas systems
- Wall-mountable design with mounting bracket
- 3/8" push-fit inlet connections on both sides
- 3/8" push-fit outlet on the bottom
- Integrated isolation on/off switch
- Suitable for commercial cellar and bar installations
- Allows different dispense pressures to be set from a common gas supply
3/8" Push-Fit Gas Connections
The regulator has 3/8" push-fit inlet connections on either side, providing flexibility when installing it into existing gas pipework.
A 3/8" push-fit outlet is positioned on the bottom of the regulator and includes an isolation switch, allowing the outgoing gas supply to be turned on or off when required.
Suitable For
Ideal for use in:
- Pubs and bars
- Breweries and taprooms
- Restaurants and hotels
- Draught beer and cider systems
- Cellar gas installations
- CO2 dispense systems
- Mixed gas dispense systems
- Multi-keg installations requiring different serving pressures
A practical wall mounted secondary gas regulator for controlling and monitoring beverage gas pressure within professional draught dispense systems.
