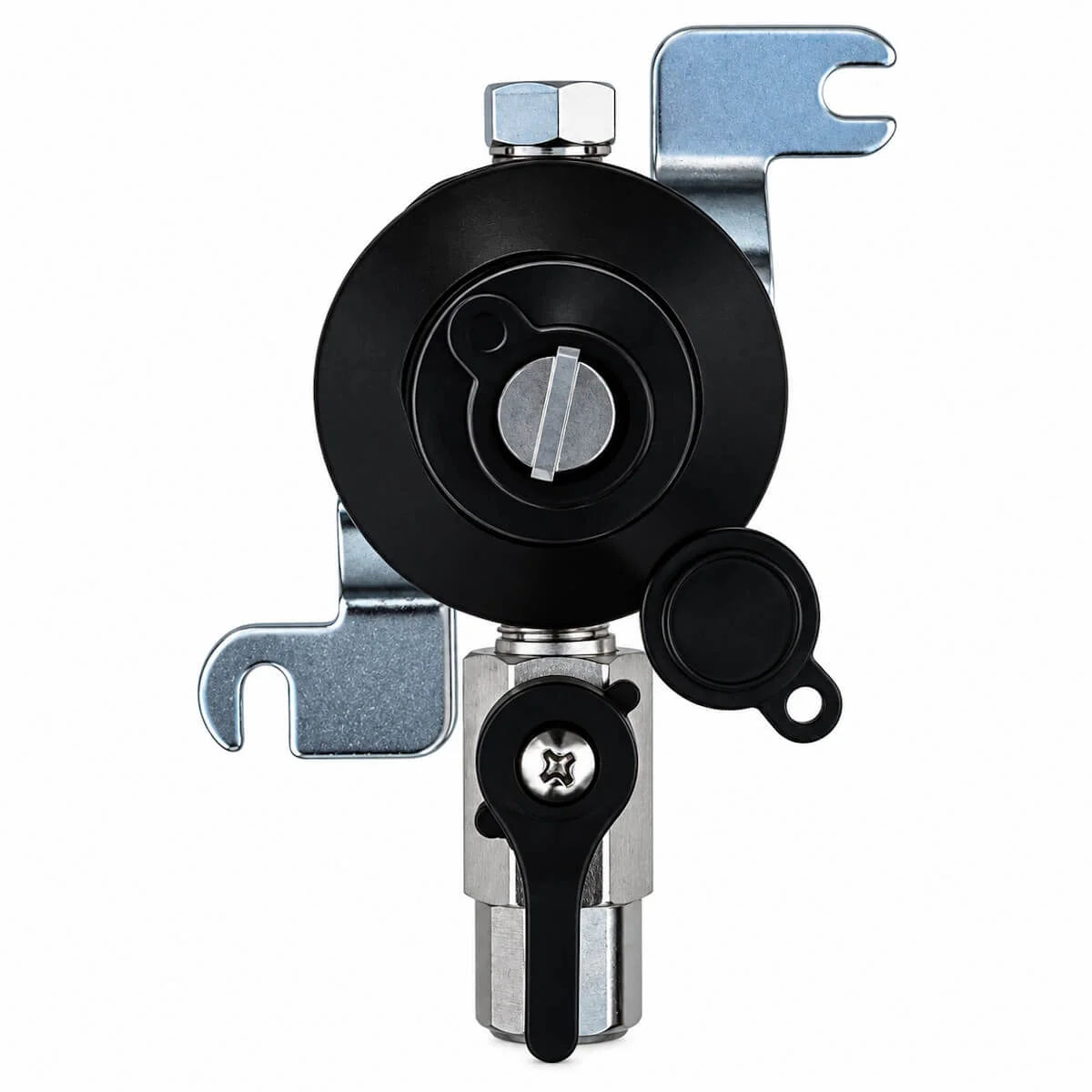

Secondary Gas Regulator Valve – Wall Mounted Without Gauge
The Secondary Gas Regulator Valve Without Gauge is designed for controlling gas pressure within professional draught beer and drinks dispense systems. Wall mountable and supplied with a mounting bracket, it allows the gas pressure supplied to individual kegs or sections of a dispense system to be adjusted independently.
Suitable for use with CO2, mixed gas and other beverage gases, this secondary regulator features 3/8" push-fit connections for straightforward installation into standard cellar and bar gas systems.
Please note: This version is supplied without a pressure gauge.
Wall Mounted Secondary Beer Gas Regulator
A secondary gas regulator is installed downstream from the primary gas regulator and allows the gas pressure to be reduced and controlled for individual products.
This is particularly useful in draught dispense installations where different beers, ciders or other products require different serving pressures while using a common gas supply.
The regulator includes an adjustment control for setting the required output pressure and an isolation switch for shutting off the outgoing gas supply when required.
Key Features
- Secondary gas regulator valve for draught dispense systems
- Without pressure gauge
- Adjustable secondary gas pressure
- Suitable for CO2, mixed gas and beverage gas systems
- Wall-mountable design
- Wall mounting bracket included
- 3/8" push-fit inlet connections on both sides
- 3/8" push-fit outlet on the bottom
- Integrated isolation on/off switch
- Suitable for commercial cellar and bar installations
- Allows individual dispense pressures to be controlled from a common gas supply
3/8" Push-Fit Gas Connections
The secondary regulator has 3/8" push-fit inlet connections on either side, providing flexibility when connecting it into existing beverage gas pipework.
A 3/8" push-fit outlet is positioned on the bottom of the regulator and incorporates an isolation switch, allowing the outgoing gas supply to be turned on or off when required.
Suitable For
Ideal for use in:
- Pubs and bars
- Breweries and taprooms
- Restaurants and hotels
- Draught beer and cider systems
- Cellar gas installations
- CO2 dispense systems
- Mixed gas dispense systems
- Multi-keg installations requiring different serving pressures
A practical wall mounted secondary gas regulator without gauge for controlling beverage gas pressure within professional draught dispense systems.
Please note: This model does not include a pressure gauge. Style and appearance may vary depending on current stock.
