John Guest Keg Gas Inlet Adaptor with NRV – 3/8" x 1/2" BSPT

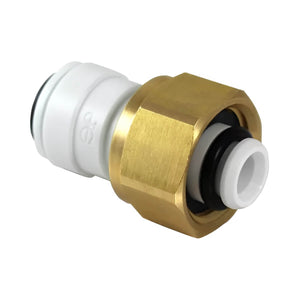

The John Guest Keg Gas Inlet Adaptor PI561214CS-NRV is a brass screw-on fitting designed to connect 3/8" OD gas pipe to the gas inlet of a compatible keg coupler. Featuring an integrated non-return valve (NRV), the fitting helps prevent product or pressure from flowing back into the gas supply line.
Commonly used with CO2, mixed gas and nitrogen draught dispense systems, this John Guest fitting combines a 3/8" push-fit connection with a 1/2" BSPT threaded connection for compatible keg couplers.
Keg Coupler Gas Inlet Fitting with NRV
The built-in non-return valve allows gas to flow towards the keg while helping prevent reverse flow back through the gas line.
This is an important difference between a dedicated keg coupler gas inlet fitting and a standard product outlet fitting.
Key Features
- Genuine John Guest keg gas inlet adaptor
- Part Number: PI561214CS-NRV
- Integrated non-return valve (NRV)
- Designed for keg coupler gas inlets
- 3/8" tube OD push-fit connection
- 1/2" BSPT threaded connection
- Brass threaded fitting
- Push-fit gas pipe connection
- Helps prevent backflow into the gas line
- Suitable for compatible beverage gas systems
- Ideal for new installations and replacement keg coupler fittings
Suitable For
Commonly used with compatible:
- Sankey keg couplers
- A-Type keg couplers
- G-Type keg couplers
- U-Type keg couplers
- Other compatible keg couplers
- CO2 gas systems
- Mixed gas systems
- Nitrogen systems
- Draught beer and cider installations
- Pub, bar and brewery dispense equipment
Specifications
- Manufacturer: John Guest
- Part Number: PI561214CS-NRV
- Tube Size: 3/8" OD
- Thread: 1/2" BSPT
- Connection: Push-fit x threaded
- Valve: Integrated non-return valve
- Application: Keg coupler gas inlet
Installation
The 1/2" BSPT threaded connection screws onto the compatible gas inlet of the keg coupler, while the 3/8" push-fit connection accepts compatible beverage gas pipe.
Ensure the pipe is cut cleanly and square before inserting it fully into the push-fit connection.
Always check the thread type and size of your keg coupler before ordering, as connections can vary between manufacturers and models.
