John Guest Beer Outlet Fitting – 3/8" x 1/2" BSPT Keg Coupler Connector
Tax included
Shipping calculated at checkout
In stock
John Guest Beer Outlet Fitting – 3/8" x 1/2" BSPT Keg Coupler Connector

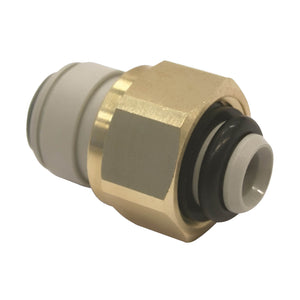

The John Guest Beer Outlet Fitting PI561214CS is a brass screw-on fitting designed to connect 3/8" OD beer pipe to the product outlet of a compatible keg coupler. It combines a John Guest push-fit connection with a 1/2" BSPT threaded connection, providing a straightforward connection between the keg coupler and beer line.
Commonly used on professional draught beer systems, this fitting is suitable for pubs, bars, breweries, restaurants and other keg dispense installations.
John Guest Keg Coupler Beer Outlet Fitting
The John Guest PI561214CS features a 3/8" push-fit connection for the beer line and a 1/2" BSPT screw-on connection for compatible keg couplers.
The push-fit connection allows compatible 3/8" OD beverage tubing to be fitted without conventional hose tails or clips.
Key Features
- Genuine John Guest beer outlet fitting
- Part Number: PI561214CS
- Designed for keg coupler product outlets
- 3/8" tube OD push-fit connection
- 1/2" BSPT threaded connection
- Brass threaded fitting
- Push-fit beer line connection
- Suitable for compatible draught beer systems
- Ideal for new installations and replacement coupler fittings
- Suitable for professional pub, bar and brewery equipment
Suitable For
Commonly used with compatible:
- Sankey keg couplers
- A-Type keg couplers
- G-Type keg couplers
- U-Type keg couplers
- Other compatible keg couplers
- 3/8" beer product pipe
- Draught beer systems
- Draught cider systems
- Pub and bar cellar installations
Specifications
- Manufacturer: John Guest
- Part Number: PI561214CS
- Tube Size: 3/8" OD
- Thread: 1/2" BSPT
- Connection: Push-fit x threaded
- Application: Keg coupler beer/product outlet
Installation
The threaded connection screws onto the compatible product outlet of the keg coupler, while the 3/8" push-fit connection accepts compatible beverage pipe.
Ensure the beer pipe is cut cleanly and square before inserting it fully into the push-fit connection.
Always check the thread type and size of your keg coupler before ordering, as connections can vary between manufacturers and models.
