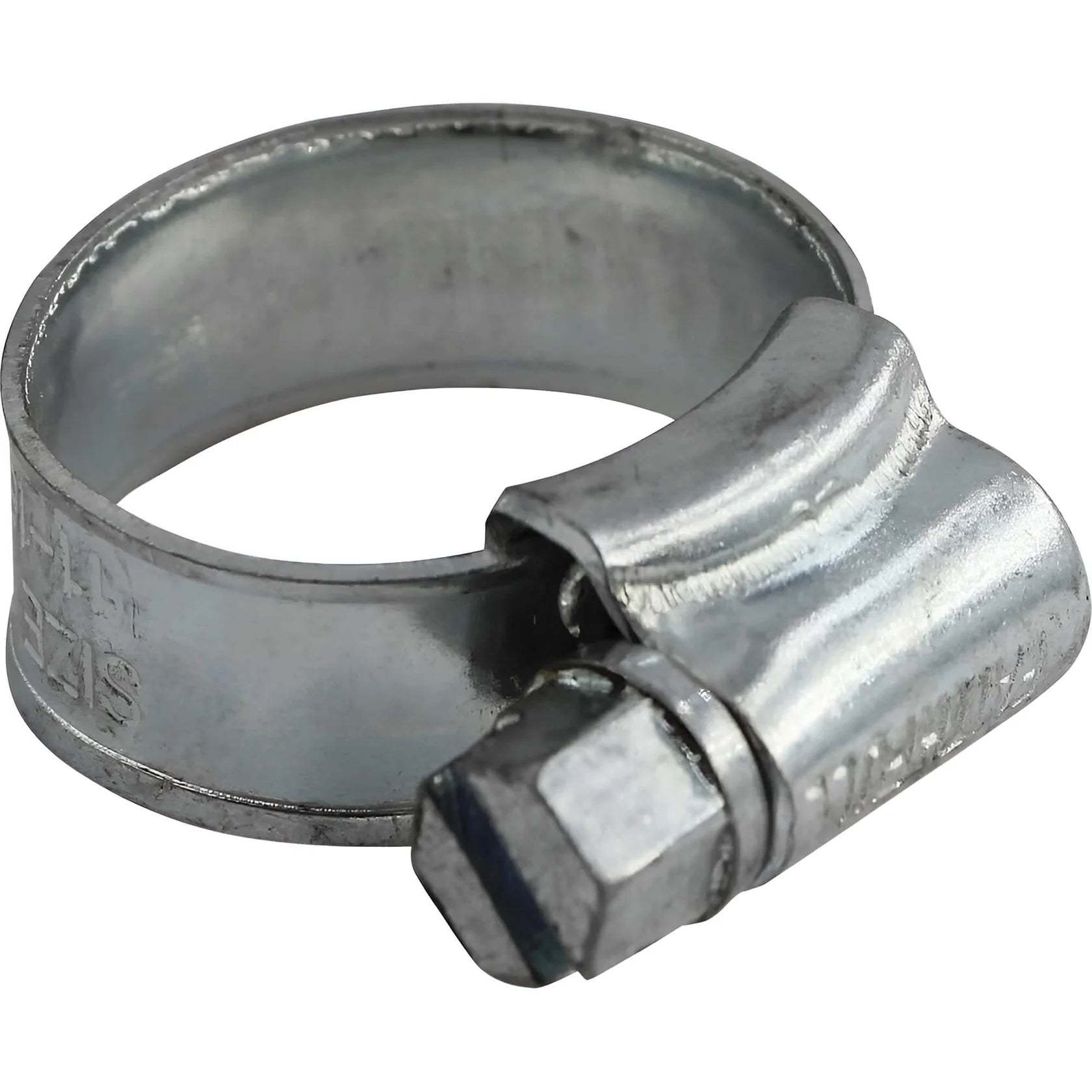

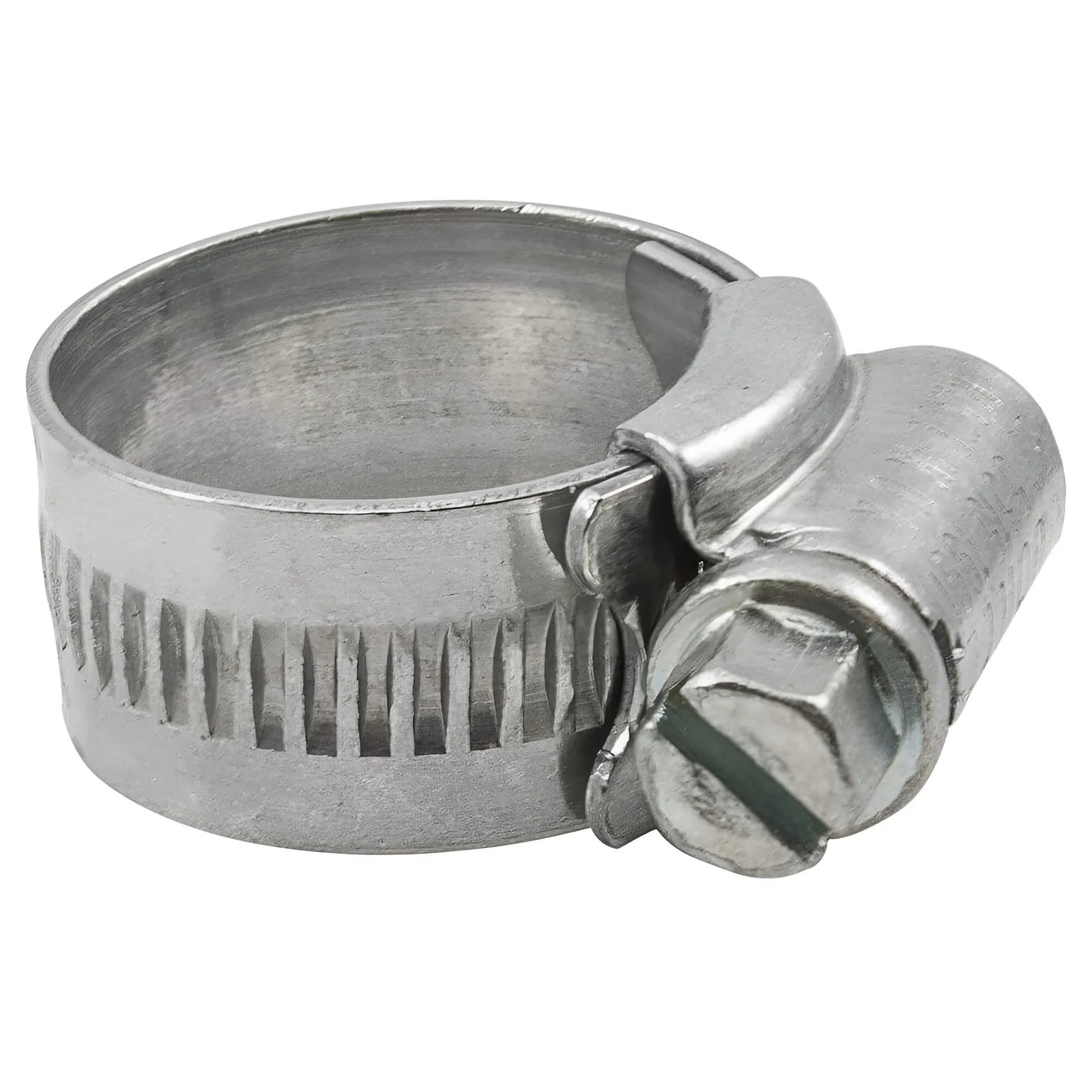

M00 Jubilee Hose Clips – 11–16mm – Pack of 10

M00 Jubilee Hose Clips – 11–16mm – Pack of 10

The M00 Jubilee Hose Clips are adjustable worm-drive clips designed for securing flexible hose onto compatible hose tails and fittings. With an adjustment range of 11–16mm, they are suitable for drinks dispense equipment as well as general hose applications.

Manufactured from zinc-plated carbon steel, these hose clips provide a simple mechanical method of securing hose connections.

11–16mm Hose Clips

The worm-drive mechanism allows the clip diameter to be adjusted around the hose and tightened using the slotted hex screw.

When selecting a clip, measure the outside diameter of the hose when fitted over the hose tail, rather than relying solely on the nominal internal diameter of the hose.

Key Features

• M00 Jubilee hose clips
• Adjustment range: 11–16mm
• Worm-drive design
• Zinc-plated carbon steel construction
• 7mm slotted hex screw
• Adjustable and reusable
• Suitable for compatible flexible hose connections
• Manufactured to BS 5315
• Supplied as a pack of 10

Suitable For

These hose clips can be used for compatible applications including:

• Draught beer and drinks dispense equipment
• Flexible beverage hose
• Cask ale equipment
• Water pipework
• Air lines
• General hose connections

Specifications

• Size: M00
• Clamping Range: 11–16mm
• Material: Carbon steel
• Finish: Zinc plated
• Drive: 7mm slotted hex
• Standard: BS 5315
• Quantity: 10 clips

Important

The 11–16mm measurement refers to the outside diameter being clamped. Check the outside diameter of the hose when fitted over its hose tail before selecting the correct clip size.
