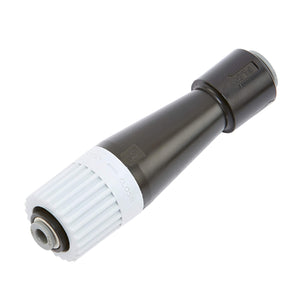

Beer Flow Controller – 3/8" Inlet x 5/16" Outlet – Adjustable Beer Line Restrictor

Beer Flow Controller – 3/8" Push-Fit Inlet x 5/16" Outlet

The Beer Flow Controller is an adjustable inline restrictor designed to control the flow rate of draught beer and other compatible beverages. Commonly installed beneath the beer font, it allows the resistance in the product line to be adjusted to suit the dispense setup.

Featuring a 3/8" push-fit inlet and 5/16" push-fit outlet, the controller can be used to transition from larger product pipework to 5/16" beer line while providing manual adjustment of the dispense flow.

Simply turn the adjustment collar to increase or decrease the restriction through the controller.

Adjustable Draught Beer Flow Controller

Correct flow rate is an important part of setting up a draught beer system.

The Beer Flow Controller provides adjustable resistance within the product line, allowing the dispense speed to be altered without repeatedly changing the length of reducer pipe.

It is commonly fitted under the beer font or close to the dispense point, keeping the adjustment accessible while remaining out of sight during normal bar operation.

Key Features

• Adjustable Beer Flow Controller
• Manually controls product flow rate
• 3/8" push-fit inlet
• 5/16" push-fit outlet
• Adjustable restriction using the control collar
• Suitable for compatible draught beer systems
• Useful for balancing dispense flow
• Compact inline design
• Suitable for installation beneath beer fonts
• Push-fit pipe connections
• Suitable for professional pub and bar installations
• Suitable for mobile and temporary draught systems
• Style may vary depending on stock

Connections

• Inlet: 3/8" push fit
• Outlet: 5/16" push fit
• Adjustment: Manual flow control collar
• Type: Inline Beer Flow Controller / Restrictor
• Quantity: 1

Suitable For

Common applications include:

• Draught beer systems
• Beer fonts
• Keg dispense systems
• Remote beer cooler installations
• Pub and bar dispense systems
• Brewery taprooms
• Mobile bars
• Event dispense equipment
• Temporary draught installations
• Beer line flow adjustment

How a Beer Flow Controller Works

The controller introduces adjustable resistance into the beer line.

Turning the adjustment collar changes the restriction through the fitting, allowing the flow at the tap to be increased or decreased according to the requirements of the dispense system.

This makes it useful when commissioning or balancing a draught installation where the required flow rate needs to be adjusted at the dispense point.

3/8" Inlet to 5/16" Outlet

The controller incorporates different pipe sizes on each side:

• 3/8" push-fit inlet for compatible product pipe
• 5/16" push-fit outlet for compatible beer line

This allows the controller to provide both flow adjustment and a transition between 3/8" and 5/16" pipework within a single component.

Important

A flow controller can help balance the dispense rate but should not be used to compensate for other faults within a draught system.

Excessive foaming or poor dispense can also be caused by incorrect gas pressure, product temperature, cooler performance, dirty beer lines or an incorrectly balanced system.

Always ensure the complete dispense system is correctly set up before adjusting the flow controller.

Please note: Style may vary depending on current stock.
